Asus Am4 Tuf Gaming X570-Plus Review [Brief Guide]

This Asus am4 Tuf gaming x570-plus review is an incredible and the most choosable one for the consumers. It comes with improved compatibility and performance with very well experience.

The Asus am4 Tuf gaming x570-plus (wi-fi) ATX motherboard is an oriented board that comes on budget and with all features and components with WIFI connectivity. It offers basic functionality with RGB lighting vendors.

If you are a game lover then you must experience both gaming laptop vs desktop for gaming fun and experience.

Specs

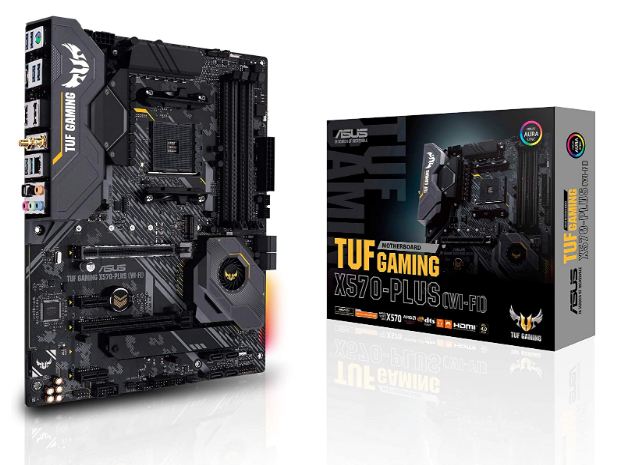

Asus Board 1

  • Socket | CPU: Socket 1331 | AMD AM4 3rd, 2nd & 1st Gen AMD Ryzen with VEGA Graphics
  • Chipset: AMD X570
  • Memory Support: 4xDIMM DDR4 2133 – DDR4 4400(O.C.) (Dependent on CPU generation)
  • Storage: 8x SATA 6Gbps, 2x M.2 x4 ( PCIE 4.0 x4 2x 22110)
  • Audio: ALC S1200A
  • Expansion Slots: 2x PCIe 4.0 x16 (x16 CPU & x4 chipset), 3 x PCIe 4.0 x1 (x1 Electrical)
  • Connectivity: Gigabit Lan – Realtek L8200A
  • Rear Panel I/O: 4x USB 3.2 Gen 1 (Type-A), 1x USB 3.2 Gen 2 (C), 2x USB 3.2 Gen2 (A)
  • Total Fan Headers: 6x 4-pin (PWM/Voltage)
  • Power Connectors: 1x 24-pin EATX, 1x 8-pin 12V, 1x 4-pin 12V
  • Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  • Item Weight: 2.65 lbs
  • RAM Memory Maximum Size: 128 GB
  • CPU Socket: Socket AM4
Pros
  • Low price

  • Debug LEDs

  • USB 3.1 Gen2 Type-C port

  • Wi-Fi included

  • UEFI BIOS design and usability

  • Chipset active cooling

Cons
  • No front panel USB 3.1 Gen2 port
GET FROM AMAZON
Customer’s Review from Amazon: On my clean install of Windows 10, I kept getting the BSOD (It would not install, I got to “setting up Windows” before the BSOD). After a few hours of web searching, I found out the BSOD error was the Wi-Fi on the motherboard. I disabled the Asus am4 Tuf gaming x570-plus manual the Wi-Fi, I had no problems with the install. The install, I turned on the Wi-Fi and it crashed on boot. To solve this I installed the Wi-FI drivers from the CD (with the wi-fi disabled) and then re-booted and it worked just fine. Seems like a big problem that should be mentioned somewhere. It would have saved me hours of searching. So far I am happy with the motherboard, but someone should mention this problem. Marked down the overall, easy to use, and stability due to this problem.

Customer’s Query from Amazon

Asus Board 2

Will this support a Ryzen 3 CPU without a bios update?

Mine came out of the box with the v1405 BIOS which is the latest and only one at this time. Has AGESA 1.0.0.4. No problem running Ryzen 3900X, NVME SSD, or 3600 memory.

Key Features

  • Next-Gen Connectivity:  It has Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
  • This Asus am4 Tuf gaming x570-plus (wi-fi) ATX motherboard Aura Sync RGB: The board offers to Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
  • TUF Gaming Alliance: The Asus am4 Tuf gaming x570-plus review hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
  • AMD AM4 Socket: It Ready for 2nd and 3rd Gen AMD RyzenTMprocessors

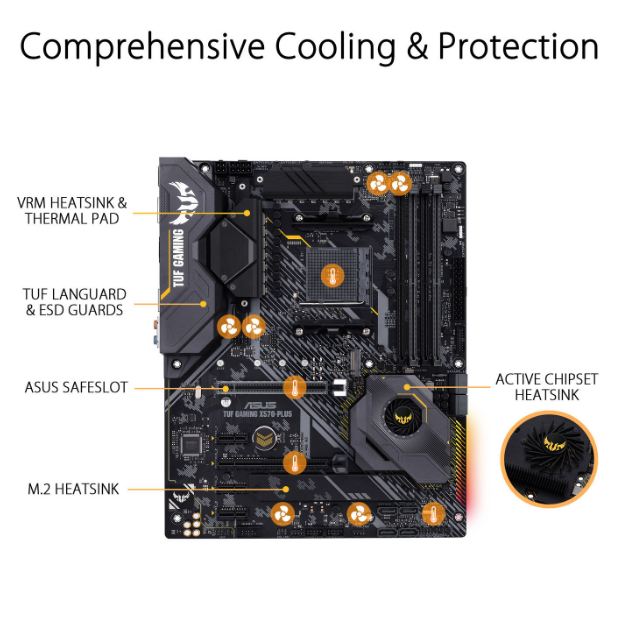

  • This asus am4 Tuf gaming x570-plus ATX motherboard Comprehensive Cooling:  Yes, the Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers, and Fan Xpert 4

Built-up

The Asus am4 Tuf gaming x570-plus manual has built up this board for the best gaming experience with digital power that is capable of providing more than enough power to the CPU. This board is very capable of what you choose to go through.

It ensures with superior power combination that makes your every game smoothly with no hang. The VRM’s are cooled by the dark aluminum heat sinks.

There are 4-pin fan headers with a module port header on the upper part of the CPU. The best gaming laptop under 500 is the best for the gamers.

Slots

Asus Board 3

This Asus am4 Tuf gaming x570-plus review is designed in a specific way with two M.2 slots. One is in the between of CPU and the primary is to the lower left edge. This asus am4 Tuf gaming x570-plus manual slots are covered by a full-length cover with thermal tape all along.

The M.2 card heat by over 10C used in a strict passive configuration with active airflow over the port plate. The scepter e255b 1658a review is the gaming monitor with good speed and best performance.

Port and Speed

The board comes with a total of four DIMM slots with an active module of 1/3 or 2/4. It supports upto 128GB memory with 3200MHz speed measurement.

It is considered overclocked speeds and official AMD Ryzen 3 series stock memory speed. The memory board contains a USB 3.0header with a 24-pin ATX power connector and a 5V addressable RGB LED header.

To the upper right of DIMM slots, the primary and the secondary 4-pin CPU fan headers with 12V RGB LED header is present.

Included other accessories

This Asus am4 Tuf gaming x570-plus review gaming motherboard comes with all other components that are necessary to get the board up running. The package includes a motherboard manual, driver DVD, TUF-branded case stickers, and a 20% coupon with CabeleMod power cables.

View Current Price On Amazon

Summary

This asus am4 Tuf gaming x570-plus vs gigabyte x570 Aorus elite motherboard offers the best gaming experience with all the supported featured. This comes with good memory the space that is well enough for the heavy gaming.

It comes with amazing speed so that the game may not get hung but very smooth. This comes in a budget so that consumers may adopt t and enjoy their gaming.

FAQ’s

Is ASUS TUF good for gaming?

This comes with a 144Hz high refresh rate with 15.6 inches full HD panel that supports a good gaming experience. However, it offers good speed as well.

Does ASUS TUF X570 have RGB?

The RGB is added to the board that is capable to detect the number of LEDs and allows the software to tailor light effects to specific devices.
